Introduction to K8s and it's Concept
Concepts: Pods, Nodes, Services, Deployments, ReplicaSets
Learning Outcome
4
Understand how these components work together for scalability
3
Describe how Services enable stable communication
2
Explain how ReplicaSet and Deployment maintain desired state
1
Identify the role of Nodes and Pods in a cluster
Topic Name-Recall(Slide3)
Hook/Story/Analogy(Slide 4)
Transition from Analogy to Technical Concept(Slide 5)
What is Clustering in Kubernetes?
Clustering means multiple machines (Nodes) working together as one single system
Instead of running application on one single server,
We distribute workload across multiple Nodes
Cluster = Group of Nodes managed by Kubernetes
In Kubernetes:
A Cluster consists of:
-
Control Plane
-
Multiple Worker Nodes
How clustering works in Kubernetes:
Nodes join a Cluster
Multiple computer(Nodes) join a cluster
1
Control Plane manages all Nodes
Control Plane manages and oversees all Nodes
2
Scheduler Places Pods
Scheduler decides On which Node Pod should run
3
Pods Rescheduled on failure
If one Node fails:
Pods are rescheduled on another Node
4
Traffic is Distributed
Traffic is evenly balanced across Pods on all Nodes
5

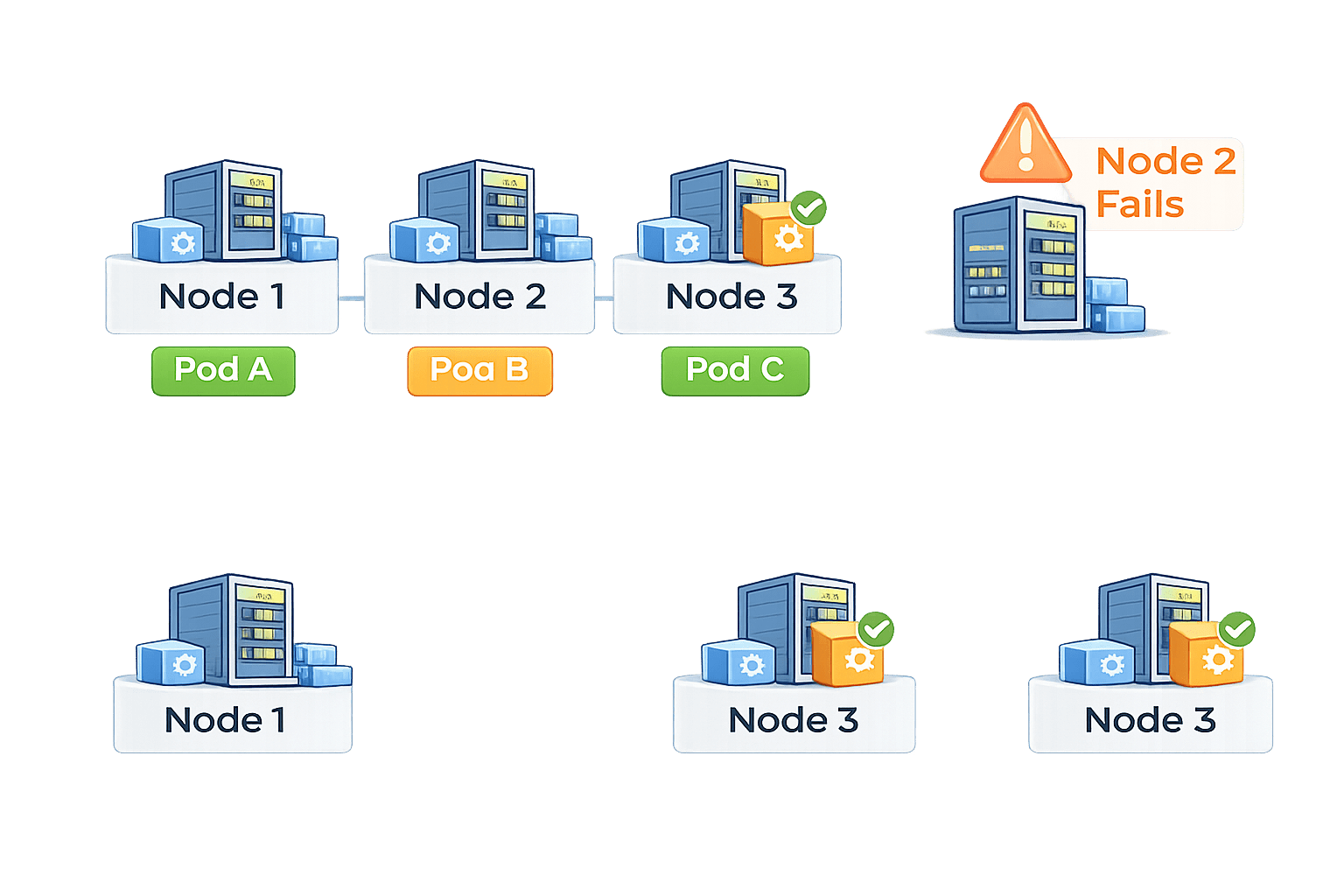

How clustering works in Kubernetes:
Example:
Pod A
Cluster ensures application remains available
Pod A
Pod B
Pod C
If Node 2 fails:
-
Pod B is recreated on Node 1 or Node 3

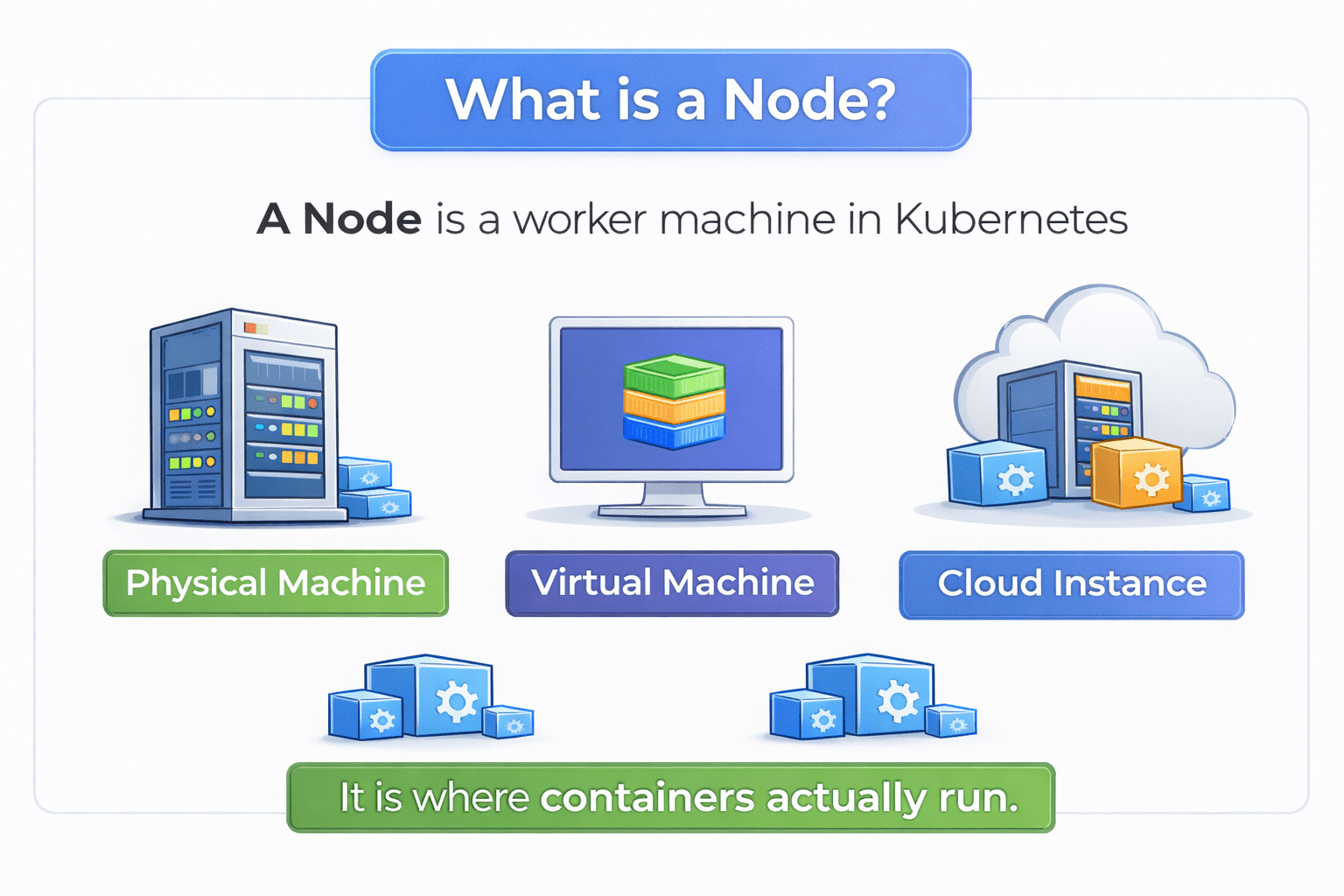

What is a Node?
A Node is a worker machine in Kubernetes
It can be :
Physical Machine
Virtual Machine
Cloud Instance
It is where containers actually run

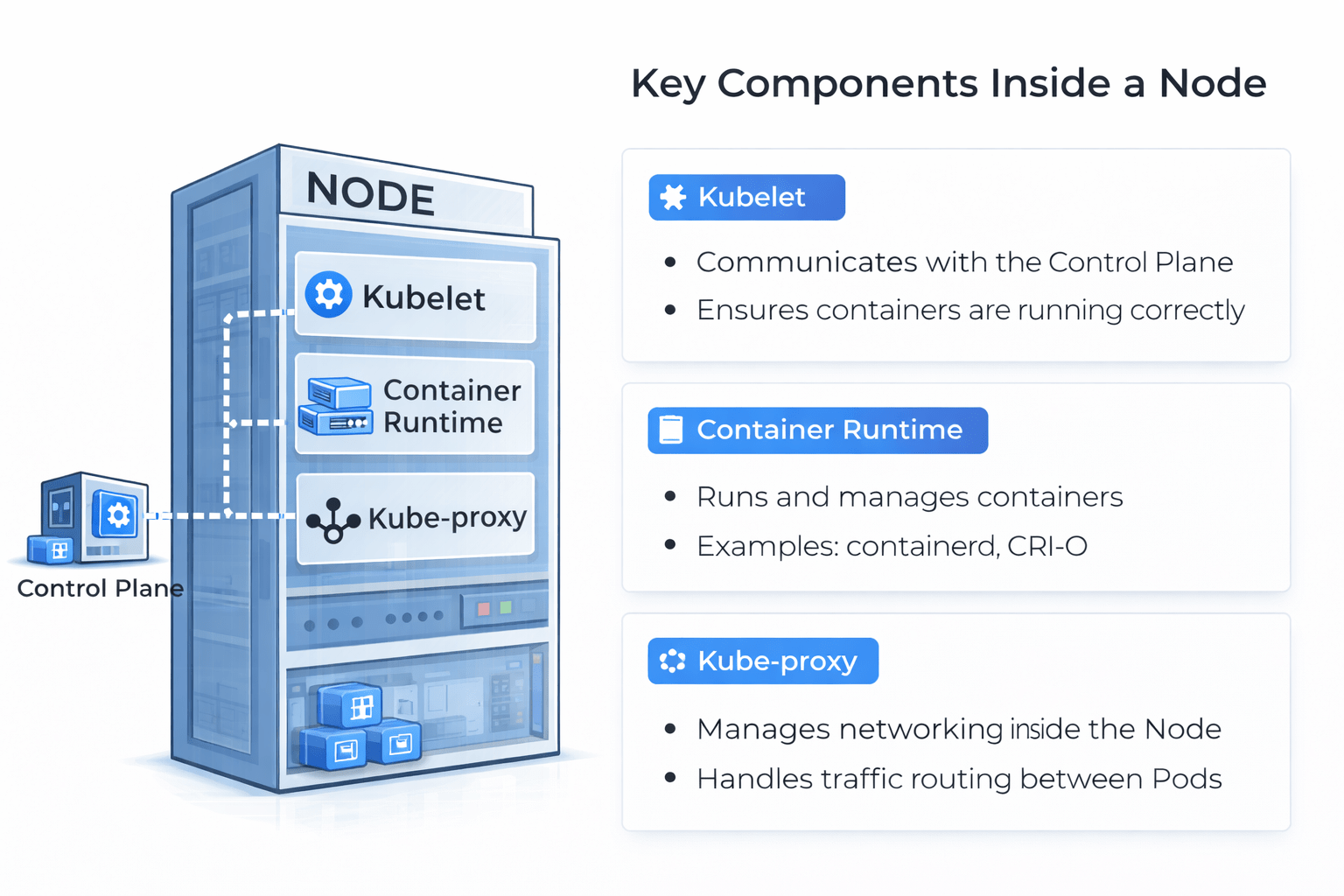

What is a Node?
Kubelet
- Communicates with Control Plane
- Ensures containers are running correctly
Container Runtime
- Runs and manage containers
- Example: containerd , CRI-O
Kube-proxy
- Manage networking inside the node
- Handles traffic routing between Pods

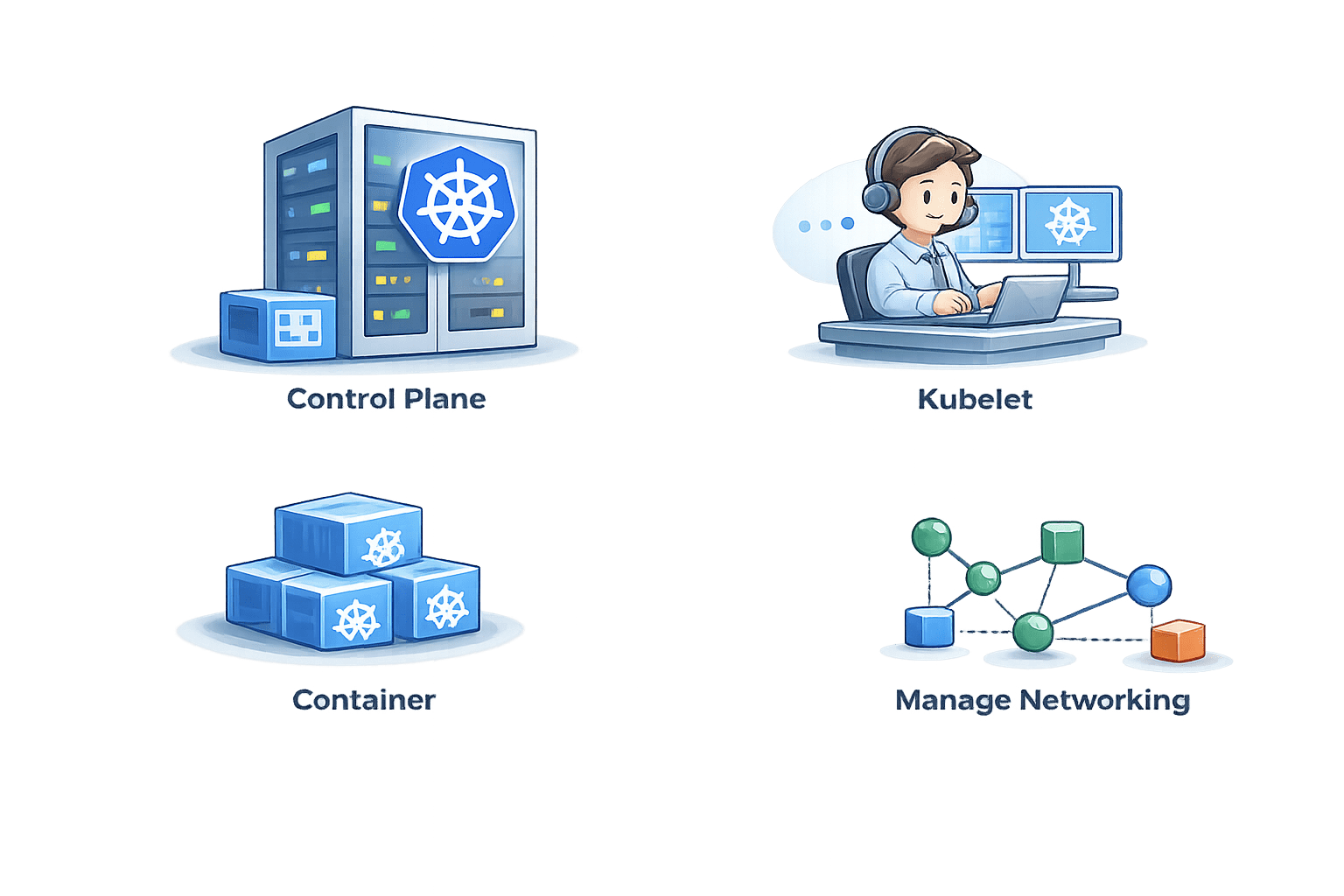

How Node works?
Control Panel
Sends Instructions to Node
1
Node
Kubelet
Receive Instructions
2
Container Runtime
Pulls image and runs container
3
Kube-proxy
Manages networking
4
How Node works?
Node = Execution environment
If Node fails:
Pods rescheduled to another Node

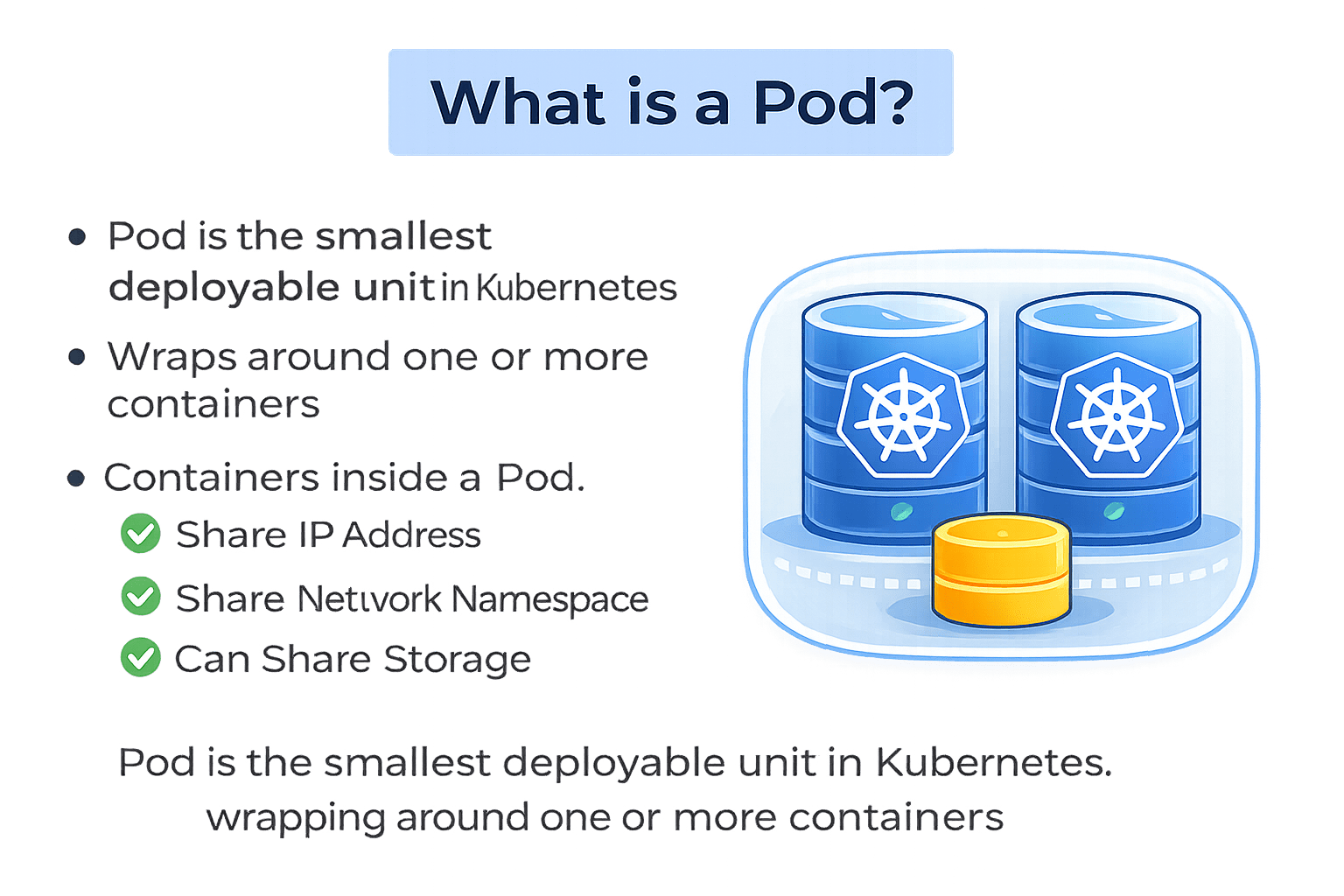

What is a Pod?
Pod is the smallest deployable unit in Kubernetes wrapping around one or more containers
Containers inside a Pod:
Share the same IP address
Share the same network namespace
Can share storage using Volumes

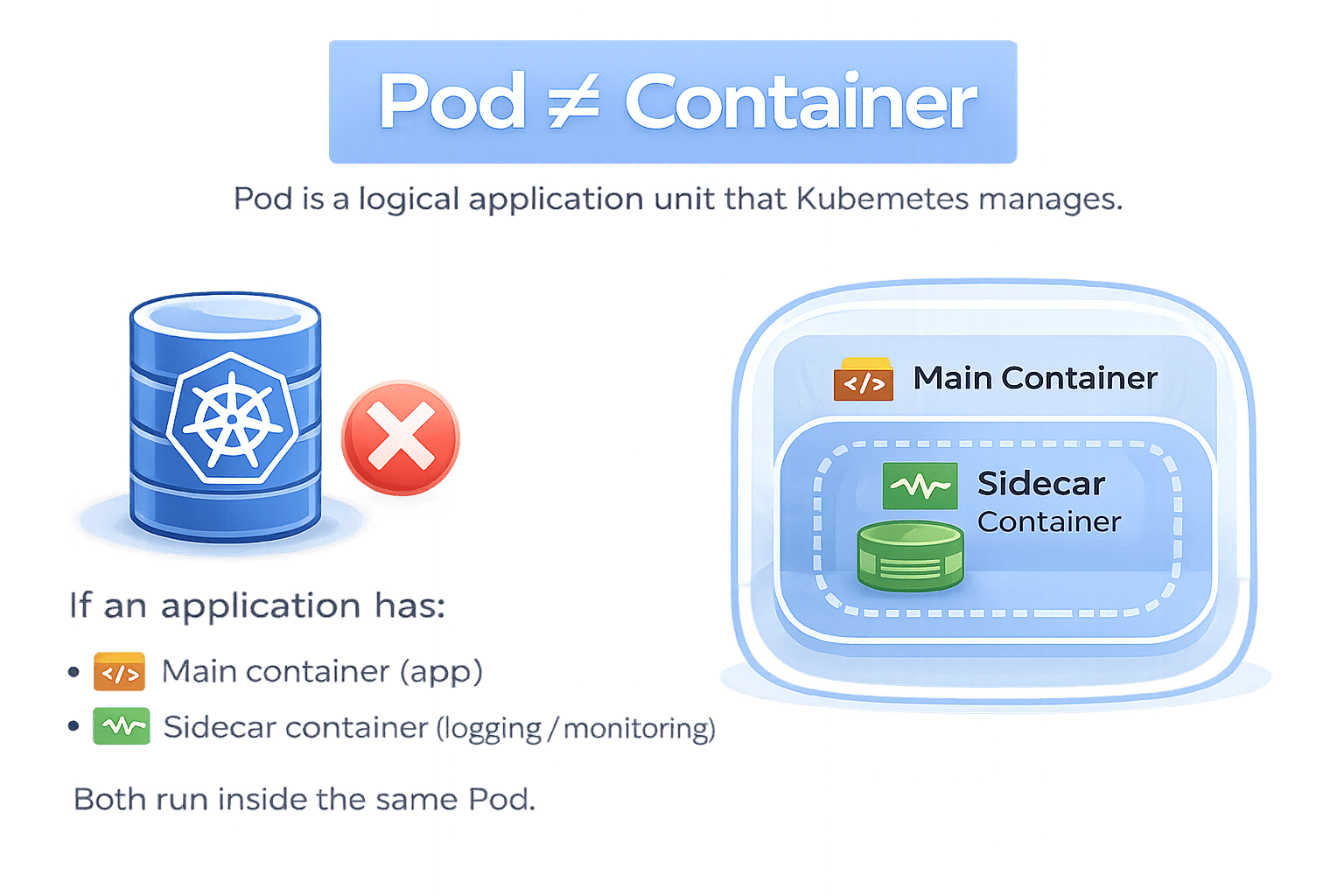

What is a Pod?
Important understanding:
Pod is NOT equal to container.
Pod is a logical application unit that Kubernetes manages.
If your application has:
-
Main container (app)
-
Sidecar container (logging / monitoring)
Both run inside the same Pod
